JBSYSTEMS is more than 20 years brand in Europe for professional audio equipment. JBSYSTEMS shocked the fast growing DJ scene with a completely new mixer design.All these product’s technologies are finally adapted to DJ’s remixing techniques through a state of the art ergonomical design and a useful set of effect functions.Fully designed so as to reply to any DJ needs

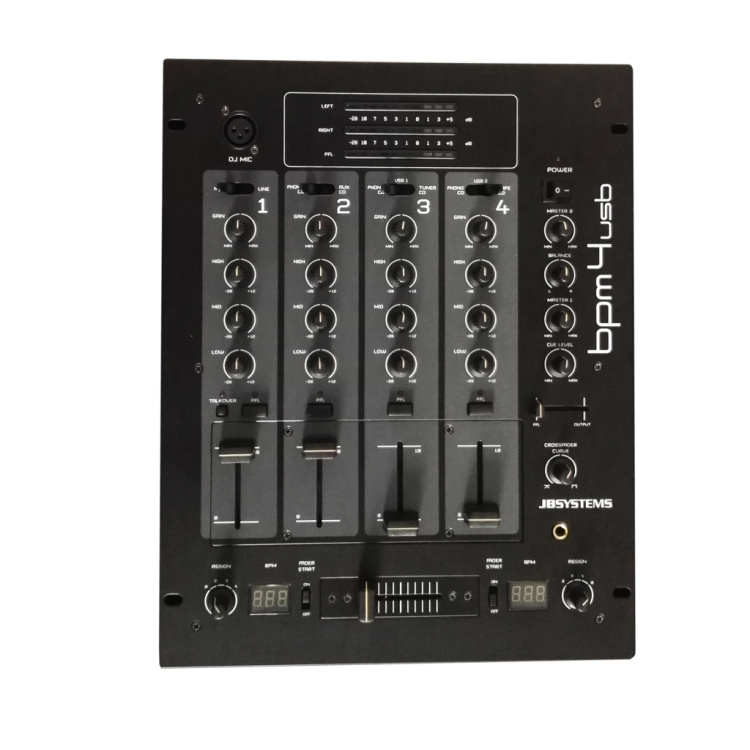

:: Product Description

     * 10 inputs on 4 channels (7line or 4 line + 3phono, 1micro, 2USB)
     * Stylish black design with blue and white LEDs
     * 2 Bidirectional USB connections (play and record at the same time!)
     * 1 separate balanced DJ micro with talkover
     * Gain, high, mid, low controls with -26dB kill function on all channels
     * Assignable and easy replaceable VCA-crossfader
     * Voltage controlled crossfader with adaptable fader curve
     * User replaceable easy gliding "steel rail" DJ faders

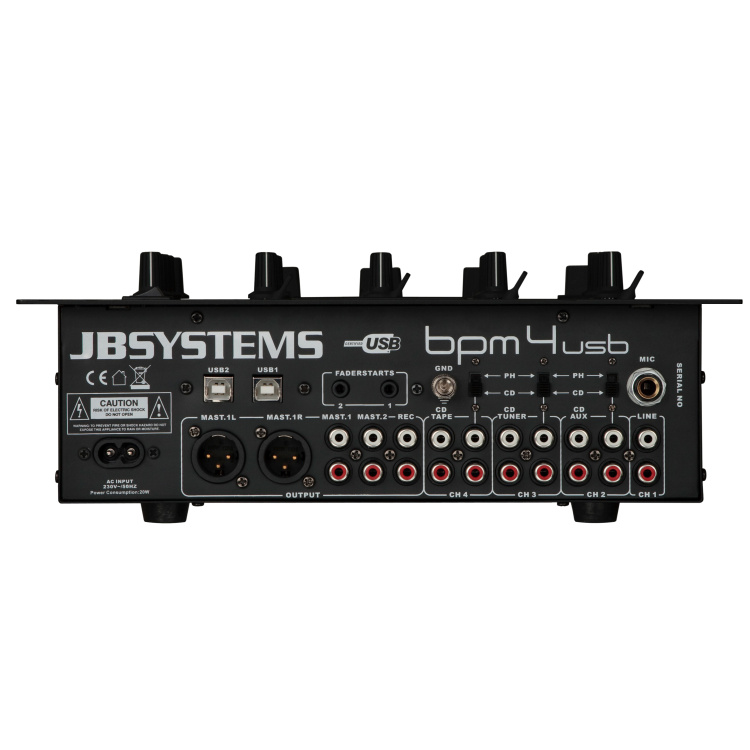

     * 2 Master outputs (Master1 with balance control)
     * Master1 with balanced XLR outputs
     * Stereo LED VU-meters on master
     * Mono LED VU-meter for PFL-signal
     * Accurate automatic beat counters
     * Crossfader starts for compatible CD players
     * Pre-fade listening with cue mix option

:: Technical Information

*Power Supply: AC 230 V, 50Hz (34Watt)
*Frequency response: 20-20.000Hz (+/-3dB)
*THD + noise: <0.05% @ 1kHz, 0dB, load = 47kΩ
*S/N Ratio (IHF-A): >78dB @ 1kHz.
*USB connections: USB 2.0, bidirectional (44,1kHz / 16bit)
*Windows ? & MacOS ? compatible.
*USB cable (not included): Lmax = 3m
*Mic inputs: 2mV @ 3kΩ
*Line/CD inputs: 340mV @ 47kΩ
*Phono inputs: 3mV @ 47kΩ
*Record output: 775mV @ 1kΩ
*Master 1/2 output: 1.55V @ 1kΩ unbal.
*Master 1 output: 2,55V @ 600Ω bal.
*Talkover: 0dB ? -14dB
*Channel tone controls: +12dB / -26dB (70Hz, 1kHz, 13kHz)
*Headphone: 3V@32Ω
*Dimensions: 294(W) x 372(D) x 93(H) mm
*Weight: 5,4kg
